1	Digital Color
2	The World of Digital Color Colors can be chosen from geometric “color spaces” (more on these later) Compared numerically Applied, reapplied, and erased without repercussions Altered in powerful and subtle ways. More dynamic and flexibility than in any traditional medium Some technical information increases productivity…
3	Part of Larger Color World Color important aspect of day-to-life Big business Color Marketing Group http://www.colormarketing.org/ Paint Design (architectural, graphic, industrial, map, product, etc.) Visualization (medical, scientific, etc.) Color therapy (believe it or not) http://www.colourenergy.com/alchemy_line.html Diploma! http://www.colourschool.com/index.html Etc.
4	Why Study Digital Color? As a User Awareness of influence of color (and good and bad use by others) As a Designer Graphic design (make a Web page that works) UI (create UIs that are effective, fun to use) As a Programmer Make better tools for others (e.g., color pickers, graphics software) Translate between different “color spaces” (e.g., RGB to HSV) Control interpolation between colors (gradients) Understand and perform color matching, etc. (e.g., in printing)
5	Roadmap What is Color? Mixing Colors Color from light Subtractive vs. Additive Color Primary Colors Mixing Colors Matching Colors Gamma Correction Color Consistency Color Matching Systems Specifying Colors Color Spaces Color pickers Color Usage Strategies
6	What is Color?

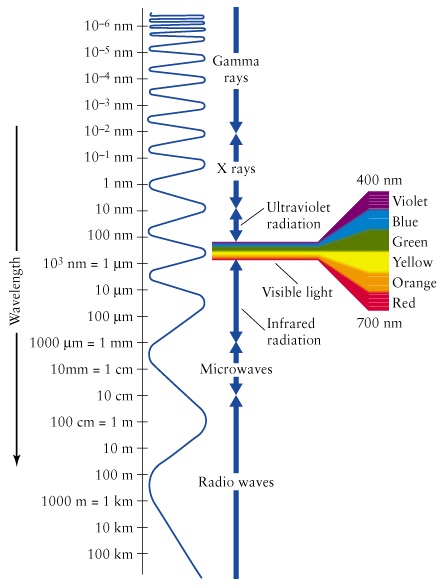

7	Visible Light Color doesn’t actually exist Eye-Brain Interpret certain level of electromagnetic energy as “color” Eye not a camera perception of color complex “color rules” often useless
8	2005: 100^th Anniversary of Einstein’s “Annus Mirabilis” Nobel prize for “photo-electric effect” Mechanism behind automatic door openers, digital cameras, etc. Key idea: conversion of energy from one form to another Light (photons) à electrical current (electrons) We have similar detectors/receptors in our eyes

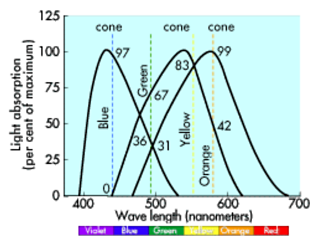

9	Receptors in the Retina Rods for grayscale vision (work in regular and low-light conditions) Cones for color vision (require more light) Since 1801, Young-Helmholtz tristimulus theory, three receptors Receptors maximally sensitive (roughly) to RGB frequencies Photons à electro-chemical currents à color sensation Think of receptors as filters

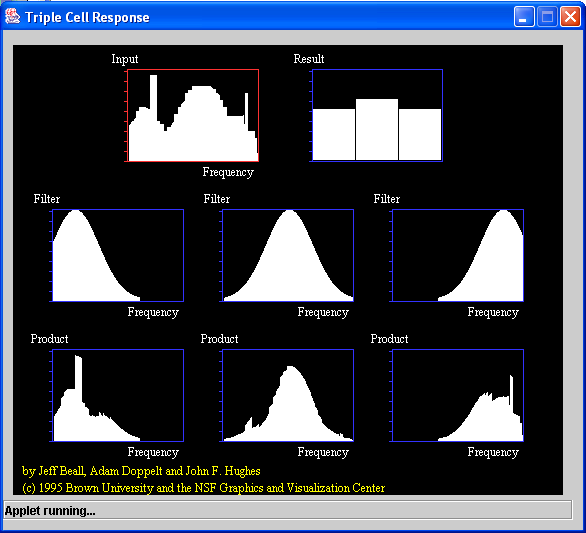

10	Many Frequencies –> Three Signals (~RGB) All frequencies modulated by Red-, Green-, and Blue-sensitive cones. Not co-incidence that RGB are additive color primaries…
11	Mixing Colors

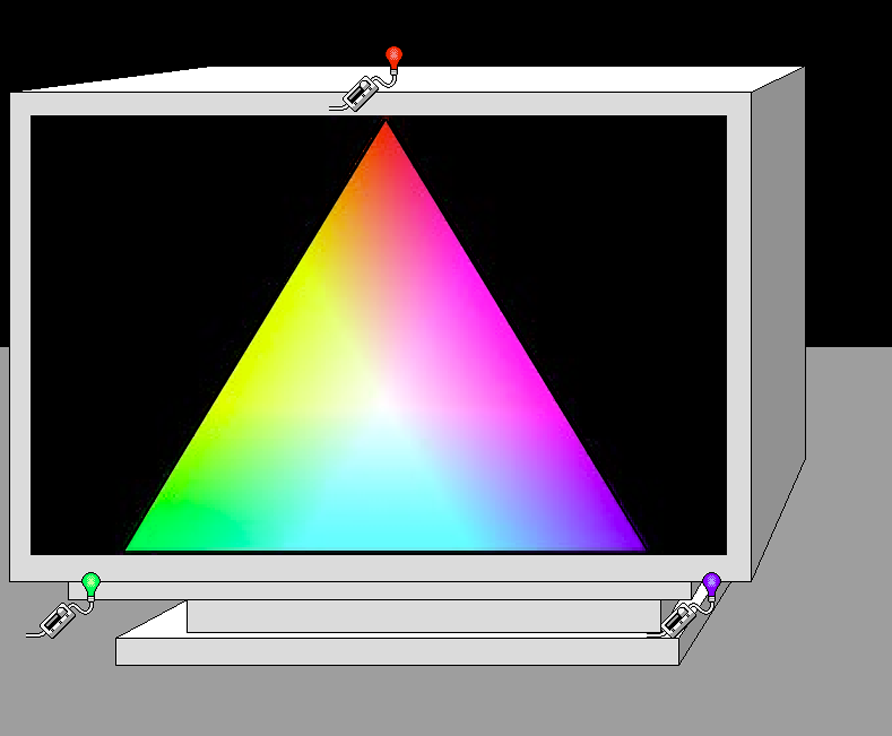

12	Additive Mixing Each wavelength or frequency is one “color” of the spectrum. New colors can be created by having several frequencies visible at a time. The more different frequencies present, the closer the color will be to white (all frequencies of rainbow together = white…)

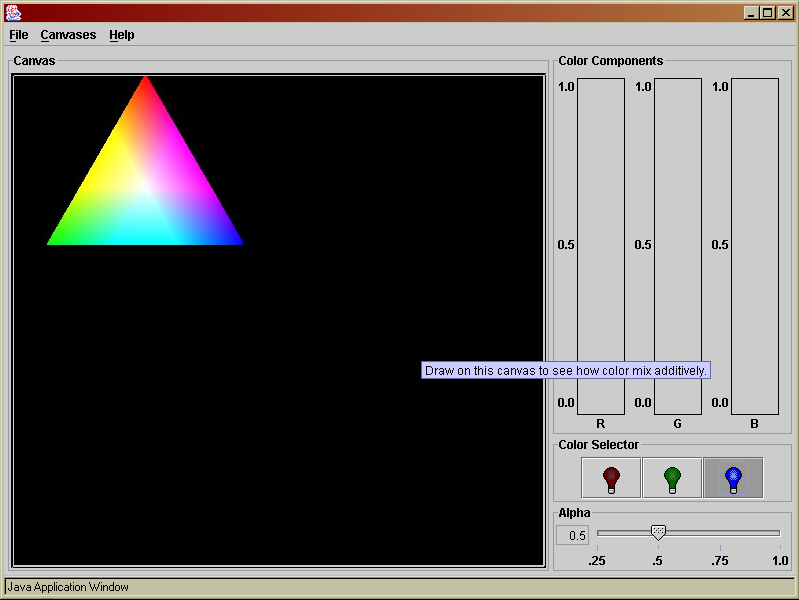

13	Additive Mixing--Demo

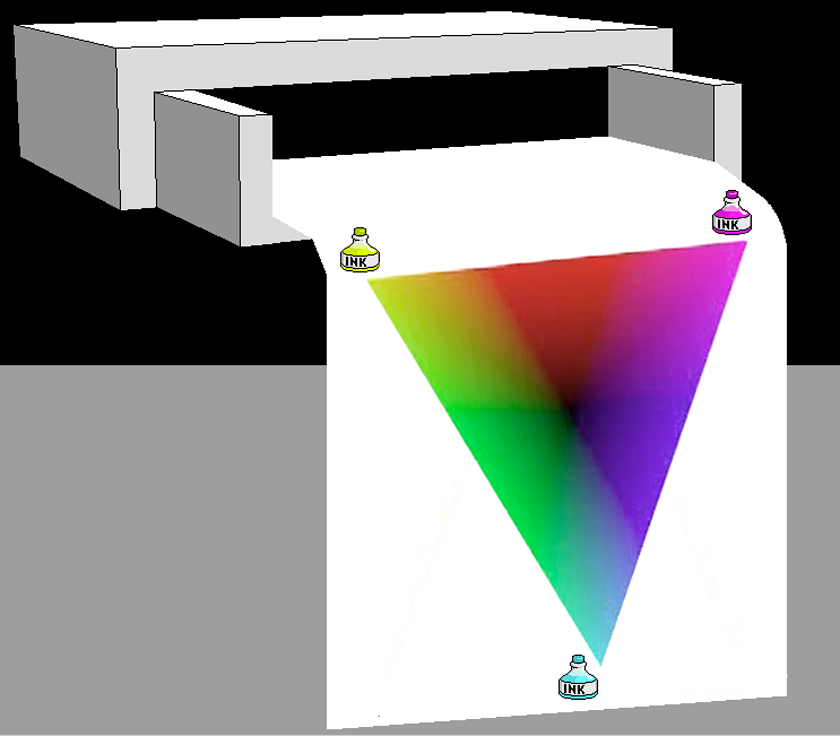

14	Subtractive Color Mixing Different pigments absorb different wavelengths of light Wavelengths reflected off an object are its “color” More colors more frequencies -- less light Primaries: Blue, Red, and Yellow (actually Cyan, Magenta, Yellow, for best results…) CYMK: for printing a black (K) also used Better quality black than mixing CYM Cheaper

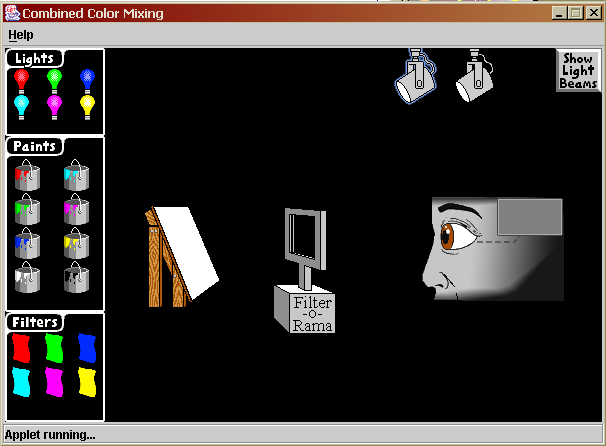

15	Combined Color Mixing
16	Paint-Program Color Mixing Paint programs (e.g., Photoshop) “mixing” only partially resembles real-world additive or subtractive color mixing. True additive mode reaches white too quickly. In physical world, adding red light to white light, creates pink light. On the computer, once white reached, more color cannot be added. True subtractive mode quickly lead to black areas. Opacity settings chief mixing technique. Take time to experiment…

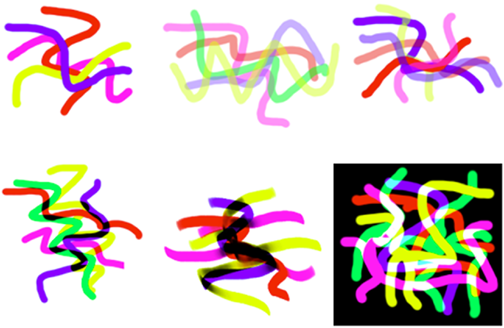

17	Mixing Examples in Photoshop

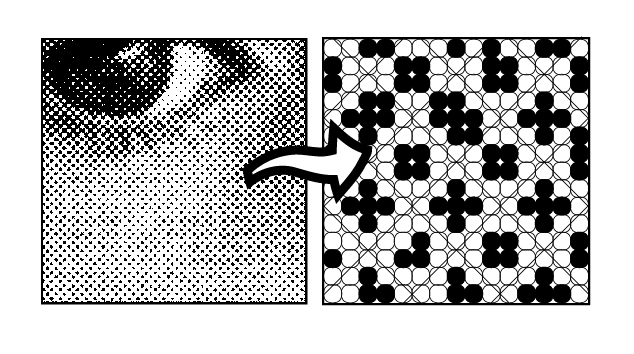

18	Printer “Mixing” Tones Traditional printing simulates gray levels or tones with varying sizes of dots or “halftones” Computers printers use clusters of dots to simulate these halftones Mixing In color printing, overlapping CMYK halftone patterns are used to give the effect of many colors The eye mixes the colors from a distance…
19	Question New-Age color healers say that wearing red pajamas will help you recover faster from a cold. What is inherently wrong with this “theory”?
20	Matching Colors
21	Gamma Correction Why does an image that looks fine on my Mac look lousy on my friend’s PC? Many possible reasons, include monitor settings, software, and room lighting, but Different gamma correction approaches on different platforms a likely culprit CRTs do not reproduce image values linearly. They are skewed in predictable way (described by an equation using the Greek letter gamma) Gamma correction corrects for this, but is handled differently on different platforms
22	Gamma Correction -- Example
23	The Solution? Test on all relevant platforms especially important for CD and Web work Use a file format that stores gamma correcting information separately from the other image data such as PNG (“ping”)
24	Color Consistency Affected by monitor settings, room lighting, software, platform, full moon… Unavoidable changes can occur during scanning, image manipulation, and printing Goal: see image, scan it, view matching image on monitor, print, and have printout look like original.
25	Tools and Strategies Use color matching software, such as ColorSynch, which contains precomputed gamma profiles (e.g., ICC profiles) for common monitors, printers, and scanners. Tweak monitor and printer to get good enough results. Tweak monitor using gamma correction software doesn’t change fundamental monitor hardware gamma, just adjusts balance afterward Adjust white point to match paper being used Adjust settings on printer Be sure image is in CMYK format. Many RGB colors cannot be printed accurately. Scan, view, print, tweak, repeat… Control lighting in room

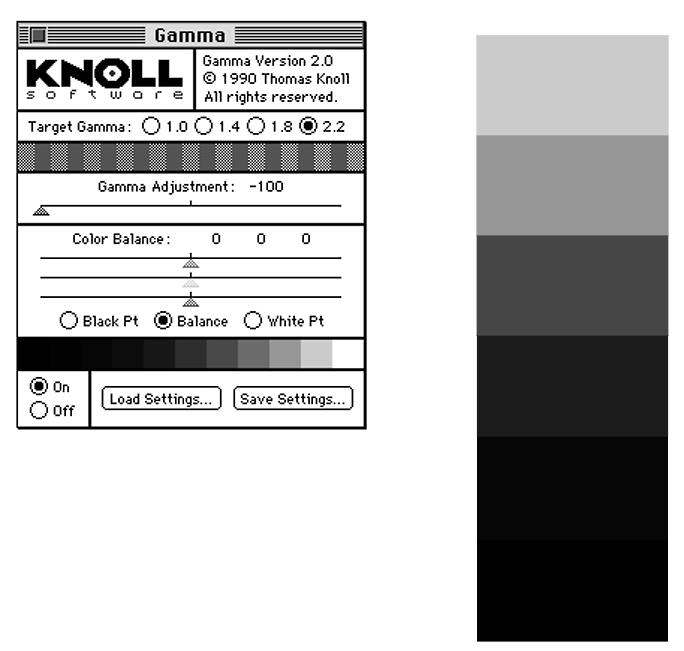

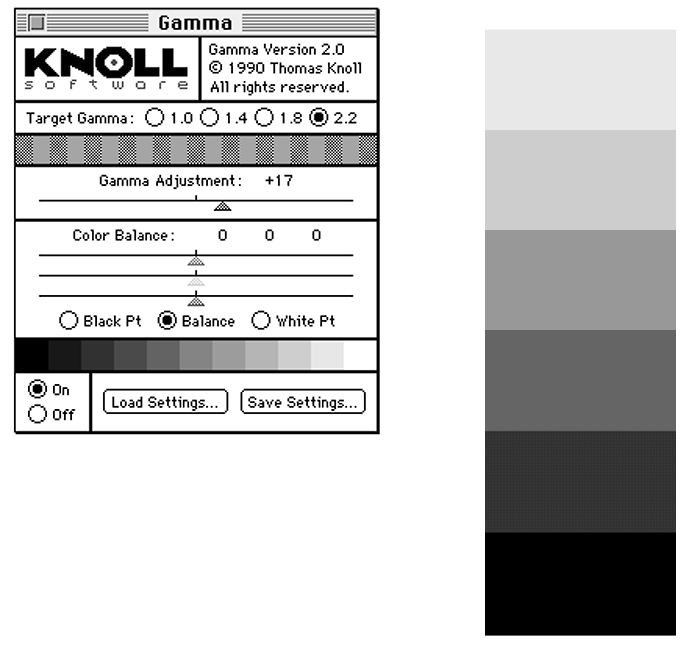

26	Tweaking Monitor with Gamma Correction Correction Software

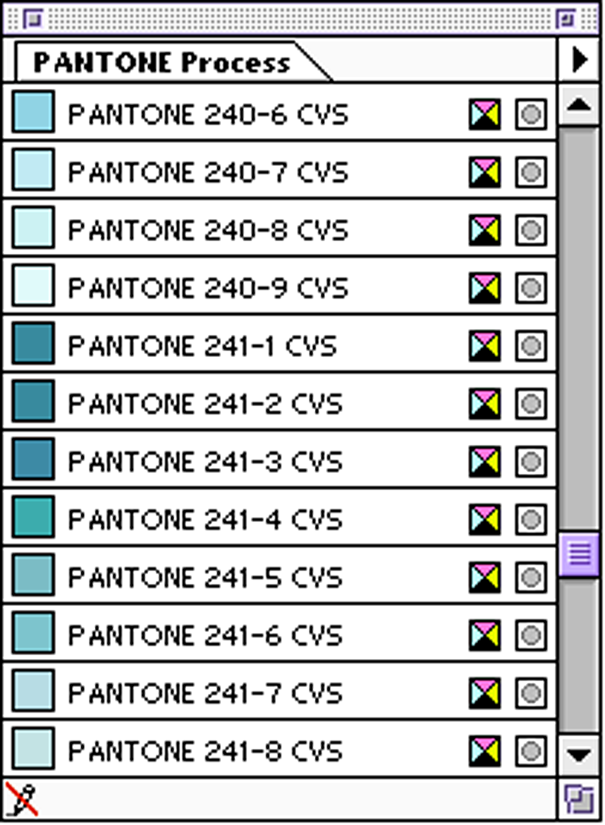

27	Color Matching with Swatches Pros: Don’t need devices to show accurate color if you have accurate swatches to go by… Cons: Doesn’t help judge relative color interactions on screen Great for graphic designs in which color palette is limited. Not useful for specifying colors in photographic work.
28	Question You email your parents a great digital picture of you winning an Ultimate Frisbee tournament. They call you complaining that the image looks washed out. Why might this be?
29	Color Specification

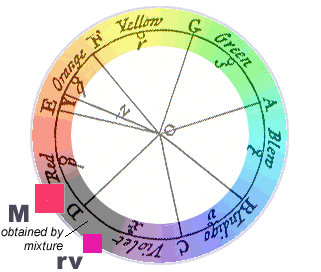

30	Color Spaces A color space is a way of ordering colors in one, two, or three dimensions to help the artist choose and work with color. From 600BC to 1600AD colors usually ordered by brightness. Newton demonstrated familiar “rainbow” ordering of white light through a prism Newton also first to arrange colors in a circle

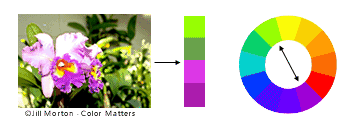

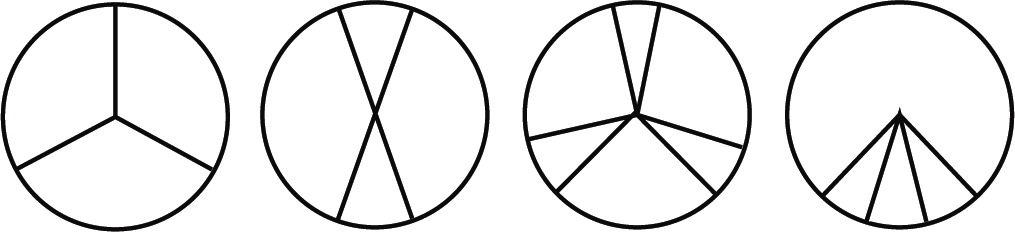

31	Using the Geometry of a Color Space Arrange color circle to put contrasting colors opposite one another Use interior of circle to show mixing results
32	Color Spaces on the Computer

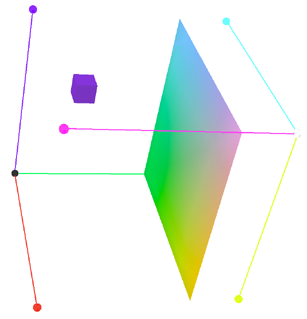

33	RGB and HSV Cubes

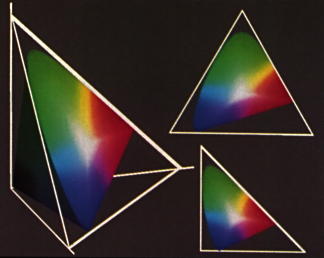

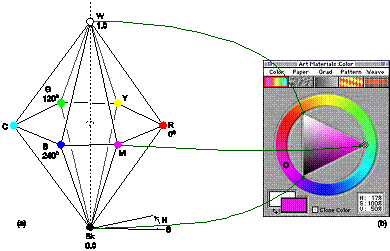

34	Double-Hexcone Color Space

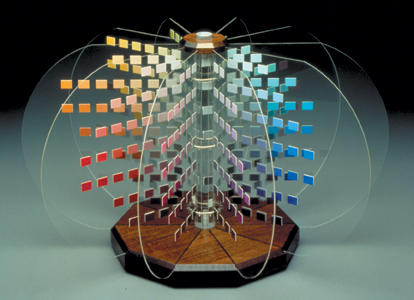

35	The Munsell System

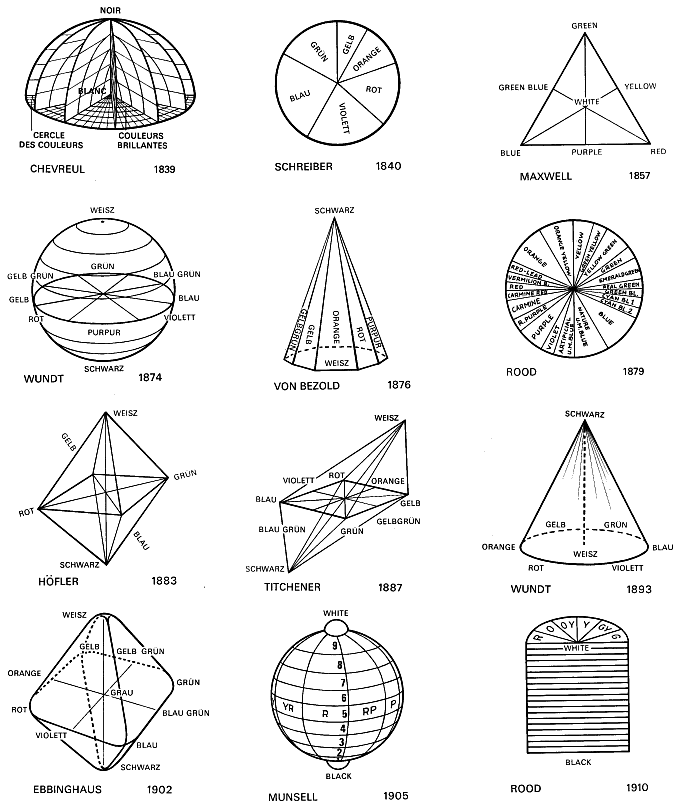

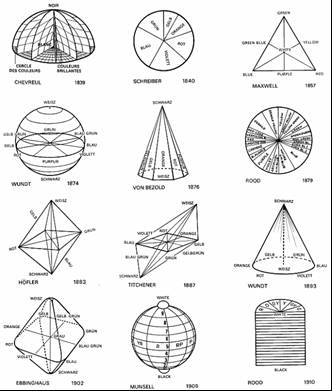

36	Color Spaces Abound A good color space is whatever geometrical arrangement helps you think better about color. You can make your own!

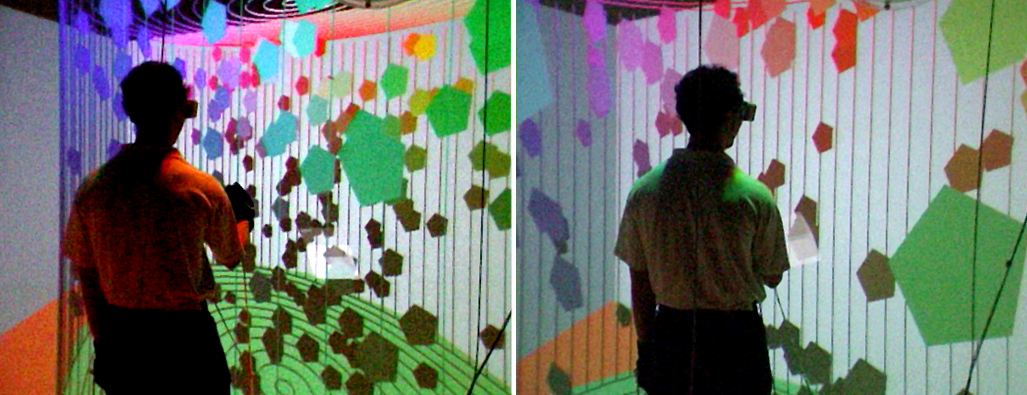

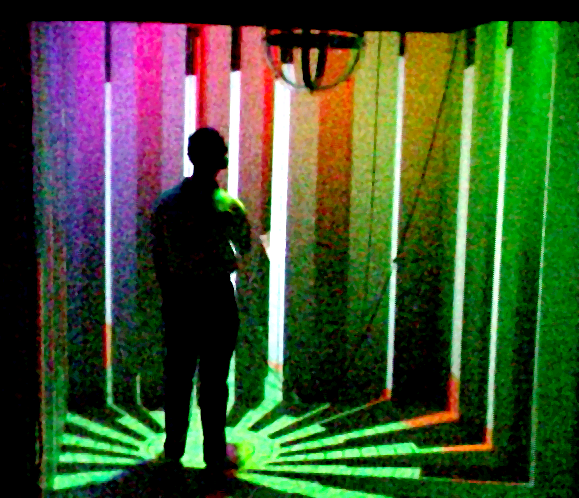

37	Inside an HSL Cylinder “Walk-in” color spaces in Brown’s Cave immersive virtual reality environment

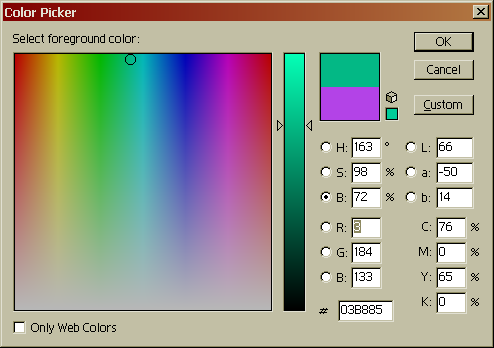

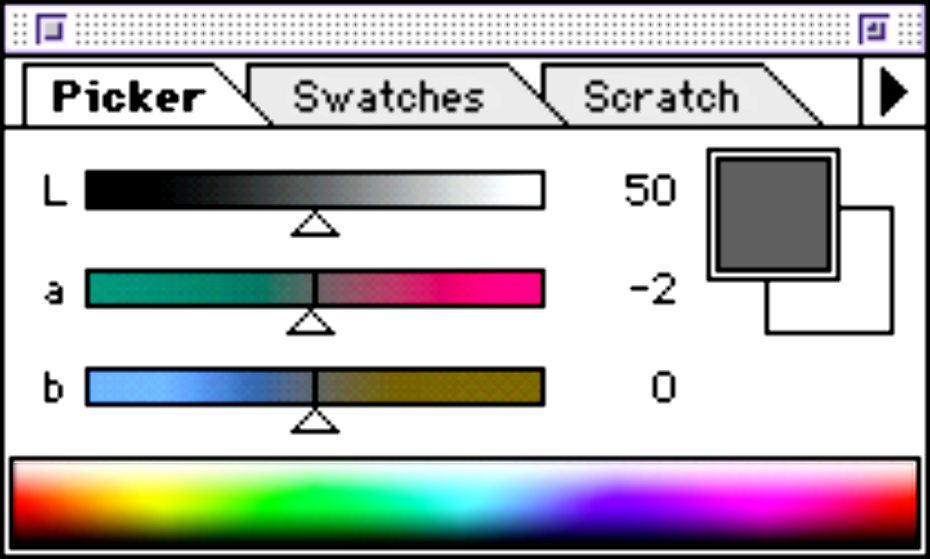

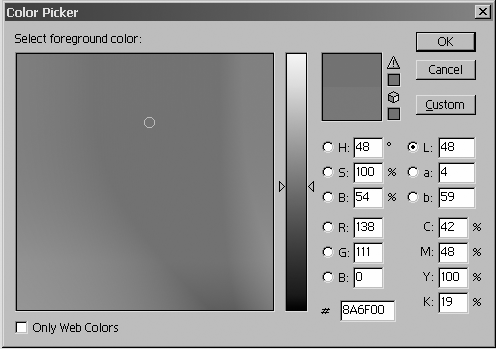

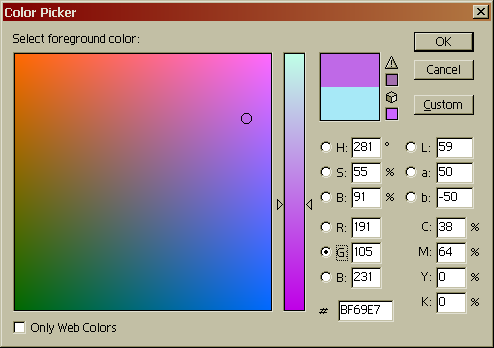

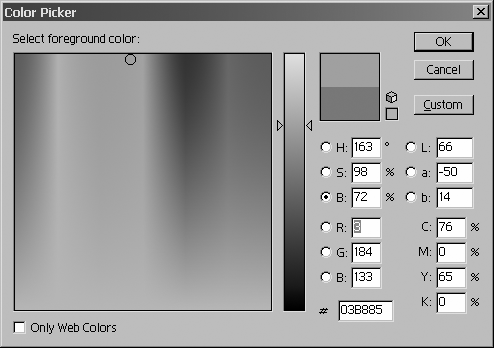

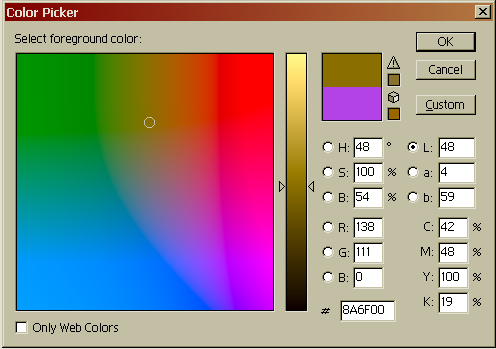

38	Photoshop Lab Picker CIELab is a perceptually based space (not represented geometrically in Photoshop) L = Lightness a = red-green axis b = blue-yellow axis
39	CIE Space-Why? CIE = Commission Internationale de l’Eclairage (International Lighting Committee). Need way to describe colors precisely for industry and science Want to describe all visible colors in terms of three variables (to get 3D coordinate space) vs. infinite number of spectral wavelengths or special reference swatches…

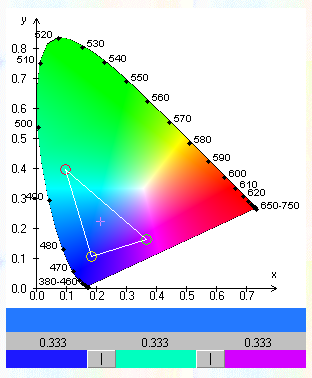

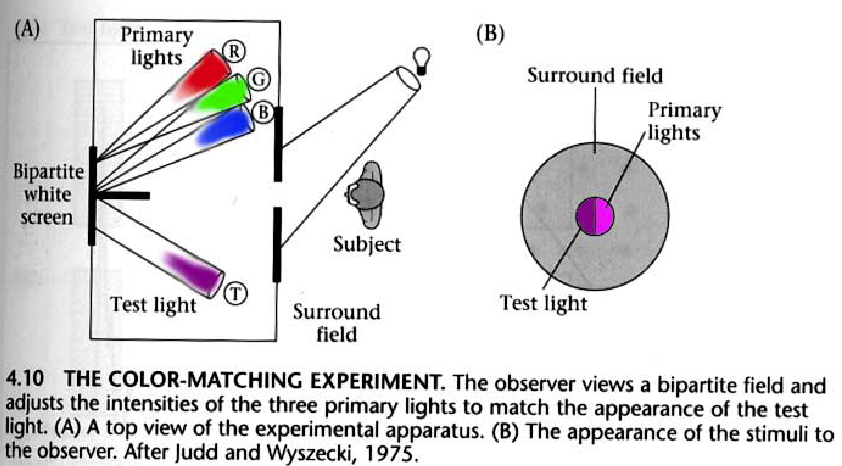

40	Generating/Defining the CIE Space Choose three well-defined light colors to be the three variables (an R, G and B) People sit in a dark room matching colors Through some mathematical massage, can describe all visible colors in terms of three parameters called X, Y, and Z related to (but not same as—not even visible colors actually) the actual RGB used
41	Voila! International Technical Specification of Color Now we have a way (specifying a color’s CIE X, Y, and Z values) to precisely characterize any color using only three variables! Represents all visible wavelengths and their combinations Very convenient: Colorimeters, spectradiometers measure X, Y, Z values. Used in many areas of industry and academia—from paint to lighting to physics and chemistry. International Telecommunication Union uses 1931 CIE color matching functions in their recommendations for worldwide unified colorimetry International Telecommunication Union (1998) ITU-R BT.1361 WORLDWIDE UNIFIED COLORIMETRY AND RELATED CHARACTERISTICS OF FUTURE TELEVISION AND IMAGING SYSTEMS International Telecommunication Union (2000) ITU-R BT.709-4 PARAMETER VALUES FOR THE HDTV STANDARDS FOR PRODUCTION AND INTERNATIONAL PROGRAMME EXCHANGE

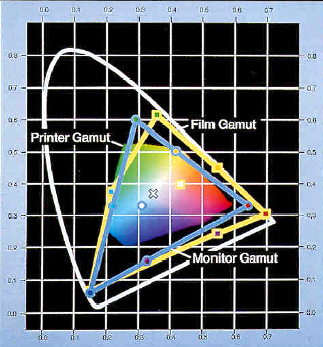

42	Color Gamuts CIE space contains all other color spaces
43	Question Your super-coder CS friend says she has invented a new and improved color space that enables CRTs to show all visible colors. Explain why you think she needs more sleep.
44	Color Strategies for Computer Graphics
45	Common Uses of Color in Computer Graphics Aesthetic uses: establish a tone or mood promote realism Highlight features, e.g.: Buttons: “exit,” “submit,” “buy…” Required fields Code numeric quantities temperature across the U.S. vegetation and mineral concentrations on Earth, moon, and planets (LandSat, Mars missions) speed of fluids in computational fluid dynamics (streamlines)

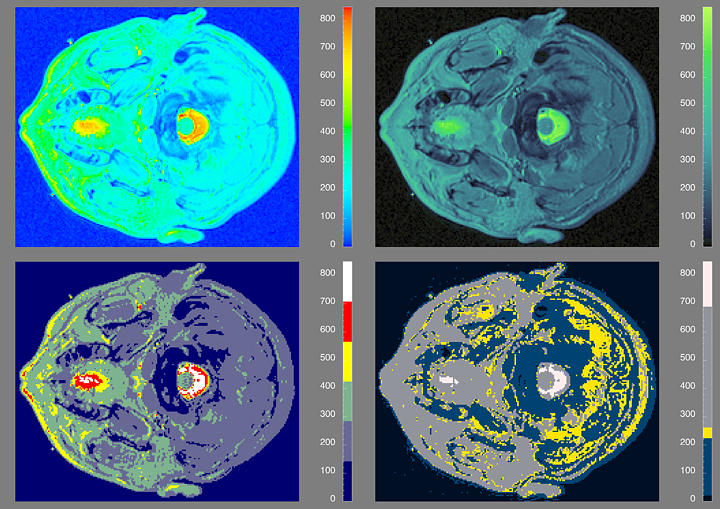

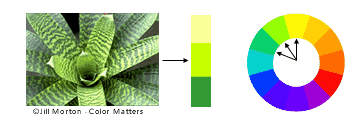

46	Coding Data, Example Different color mappings reveal different amounts of useful information can be adapted to different tasks
47	Interactive Example—Map Coloring
48	Some Guidelines Select a color palette according to some method, typically by choosing some contrasting and/or some similar colors Light-dark contrast more important than hue contrast Especially important for text. Text MUST have value contrast! Red-green differences not discerned by many people Hue differences lost in small areas When in doubt, avoid color (less is more) Group similar items by using similar colors or backgrounds Use brightness and saturation (sparingly) to draw attention Be aware of task or cultural contexts that influence interpretation of color codings

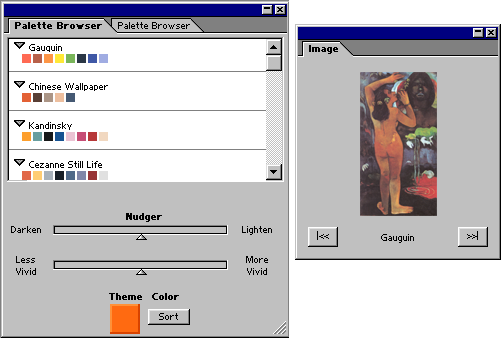

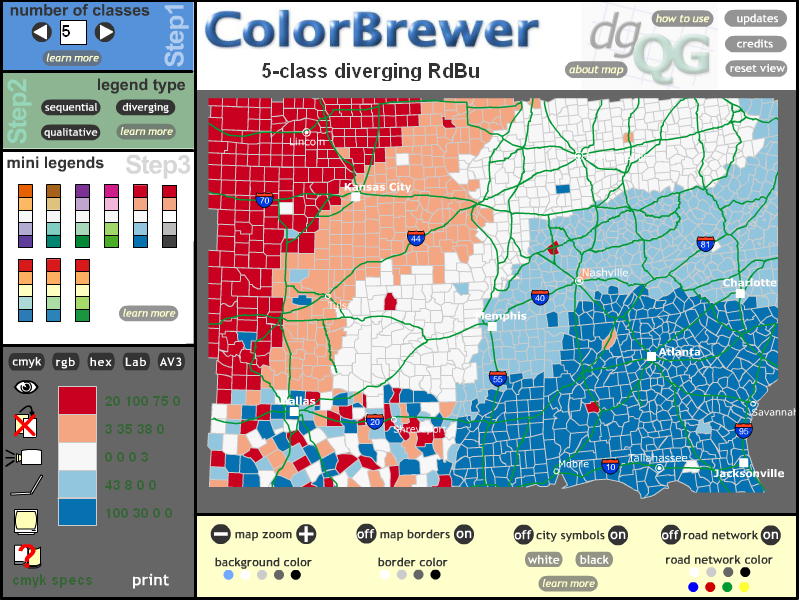

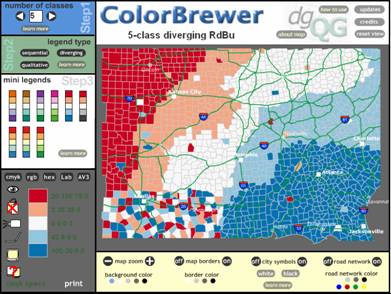

49	Better Tools 1/2 Color Brewer (previous slides) IBM Open Visualization Data Explorer http://www.research.ibm.com/dx/ Meier, Barbara, Spalter, Anne Morgan, and Karelitz, David, Interactive Color Palette Tools, IEEE Computer Graphics and Applications, Volume 24, No. 3, (2004).http://www.cs.brown.edu/~bjm/meier_ipt.pdf

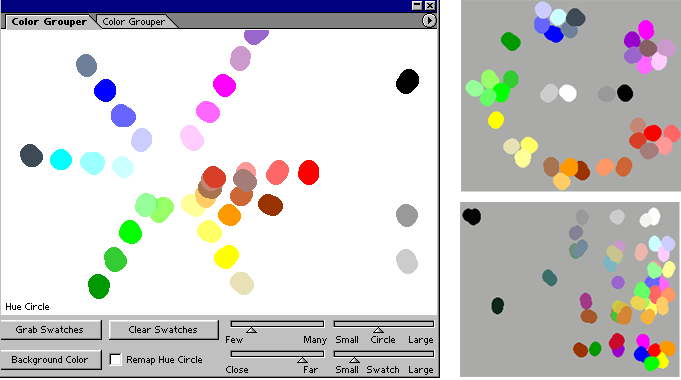

50	Better Tools 2/2 More examples from Palette Tools paper
51	Question You are making a Web page for your band, The Chromatones. Your drummer uses dark red text on black because “it looks like blood, man.” Why is this not a good design choice?
52	What’s Wrong with These Pictures?

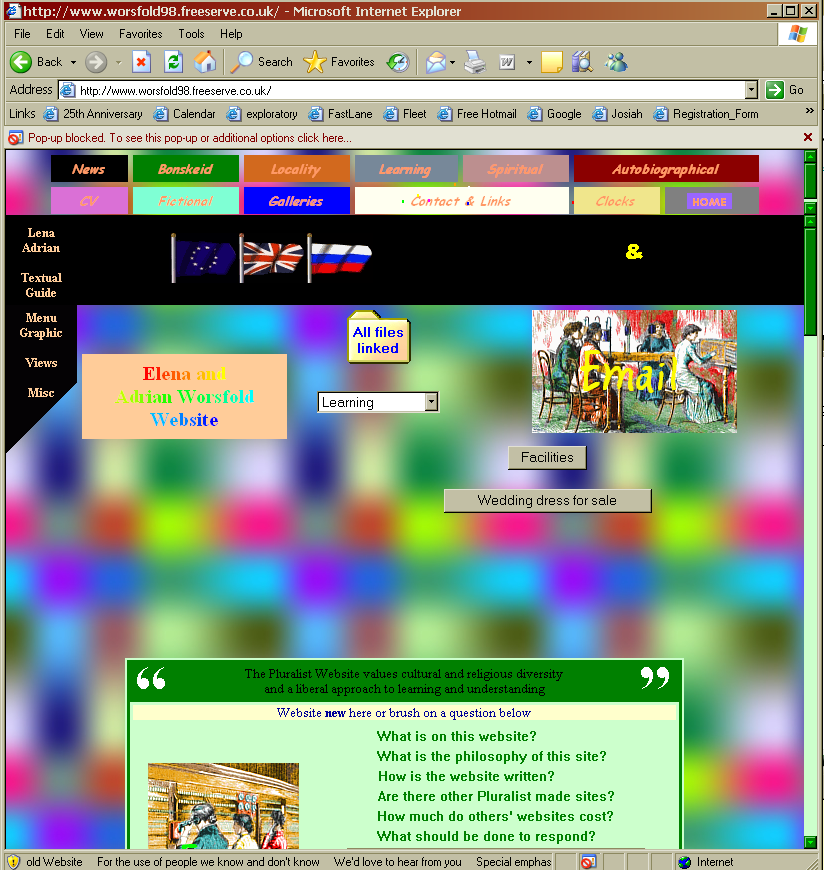

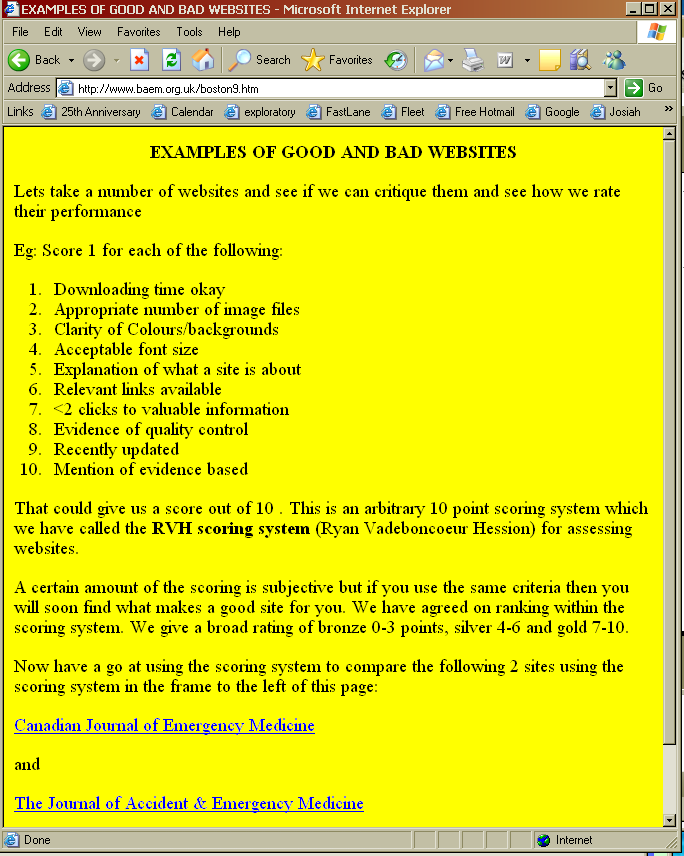

53	People Who Live in Glass Houses… http://www.baem.org.uk/boston9.htm
54	Hmmm, Where to Start?

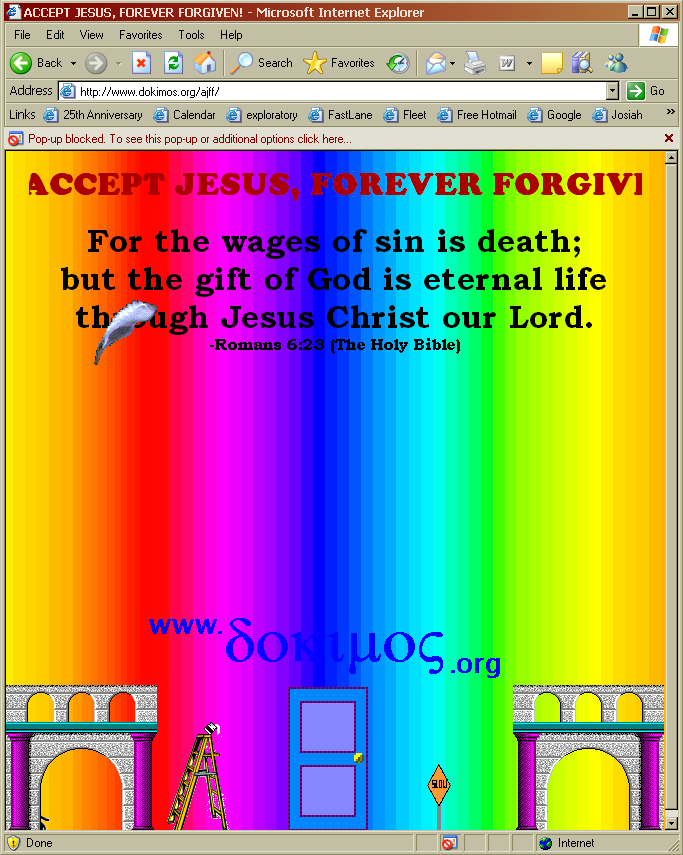

55	No Comment Needed… http://www.dokimos.org/ajff
56	Beyond 2D
57	References and Resources Web Sites 3D Color Gamut Visualization Tools: http://www.color3d.com/ Color Matters (a useful and entertaining resource): http://www.colormatters.com Color theory applets (Albers-like matching, color spaces, and more): http://www.cs.rit.edu/~ncs/color/ Cynthia Brewer, homepage with links to papers and her ColorBrewer http://www.personal.psu.edu/faculty/c/a/cab38/ Exploratories: http://www.cs.brown.edu/exploratories, navigate to color theory section (color mixing, color perception) Handprint Water Color Site (contains a multi-disciplinary overview of color): http://www.handprint.com/HP/WCL/wcolor.html Color Models, quite comprehensive http://www.colorsystem.com/ Online book on color http://www.colorvoodoo.com/cvoodoo4.html Get your own color cube!!! http://www.colorcube.com/intro.htm Great PPT handout from lecture on color in Graphics course at UCSD http://www.maelabs.ucsd.edu/mae152/handouts/1 Pat Hanrahan color lecture from Visualization course (Stanford) http://www.graphics.stanford.edu/courses/cs448b-04-winter/lectures/color/ Maureen Stone’s SIGGRAPH course on Digital Color http://www.stonesc.com/signotes/index.htm Why Should Engineers and Scientists Be Worried About Color? Bernice E. Rogowitz and Lloyd A. Treinish, IBM Thomas J. Watson Research Center, Yorktown Heights, NY http://www.research.ibm.com/people/l/lloydt/color/color.HTM Very good list of links to many areas of color research and practice http://www.efg2.com/Lab/Library/Color/ RIT color applets http://www.cs.rit.edu/~ncs/color/ Books The Computer in the Visual Arts, Anne Morgan Spalter, Addison-Wesley, 1999. Electronic Color, Richard Norman, Van Nostrand Rheinhold, 1990. Computer Graphics, Principles and Practice, Foley, van Dam, Feiner, and Hughes, Addison-Wesley, 2^nd Ed, 1990. A Field Guide to Digital Color, Maureen Stone, A.K. Peters, 2003
