1	2D Geometric Graphics Roadmap What is geometric graphics? Seeing geometry (rendering) Transformations Working with paint and draw programs: pros, cons, and combinations
2	Geometry-based Graphics Geometry-based graphics applications store mathematical descriptions, or “models,” of geometric elements (lines, polygons, polyhedrons…) and their associated attributes (e.g., color, material properties). Example 2D geometric programs: Adobe Illustrator, Macromedia Freehand, AutoCAD and other CAD software.

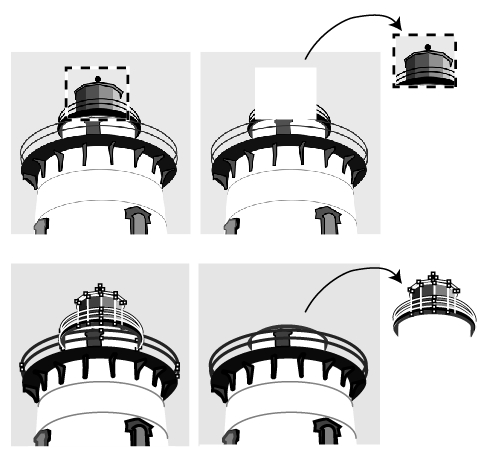

3	Edit Objects, Not Pixels In paint (raster) programs (top), one can modify selected areas to change pixel values. The area shapes depend on selection tools used In draw programs, one can select the objects (lines, curves, etc) but not randomly designated areas

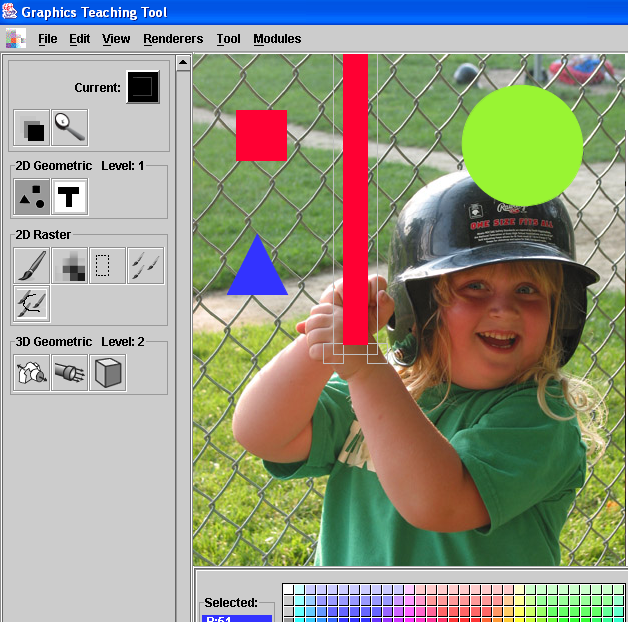

4	GTT 2D Geometric Layer Demo shapes and inspection tool
5	Postscript Example %! %% Draws a one square inch box and inch in from the bottom left /inch {72 mul} def % Convert inches->points (1/72inch) newpath % Start a new path 2 inch 2 inch moveto % 2 inches in from the lower left 3 inch 2 inch lineto % bottom side 3 inch 3 inch lineto % right side closepath % Automatically close path fill % Fill the defined shape showpage % We're done... eject the page
6	Vocabulary of 2D Geometric Programs Although used to create complex illustrations, all compositions made up of: Vertices Lines Curves The curves (lines are a special case of a curve) have “attributes” Thickness Color “Filling” a curve paints colored pixels in the space enclosed by the curve
7	Splines The curves used in 2D geometric programs are a special type called splines We won’t go into the mathematical definition here… Named after flexible pieces of wood bent around metal “ducks” to create smooth contours for ship design Characteristics Easy to make smooth Can pass through pre-selected points Are altered via “control points” that change degree of curvature

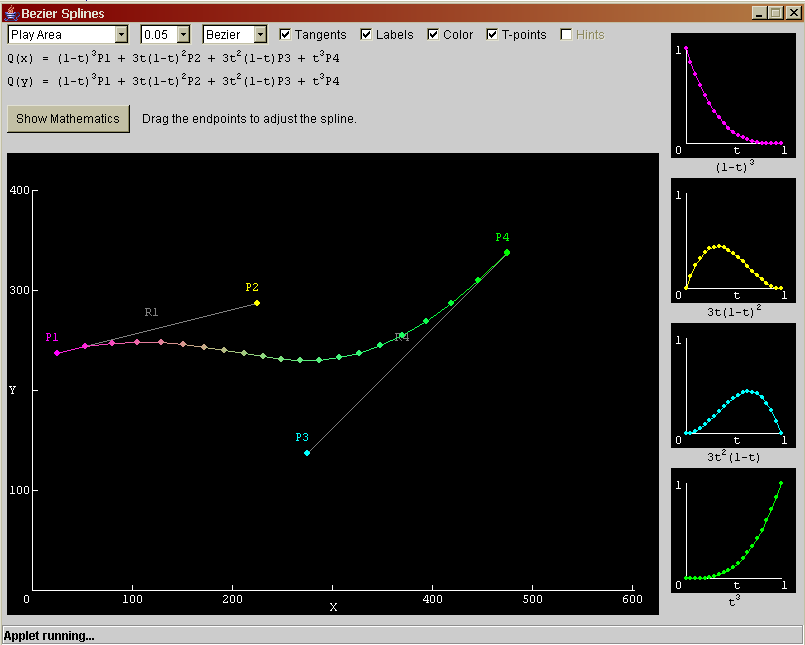

8	Fun with Splines Go to “Exercises” option When done with first one, choose “Exercises” again to get new challenge Splines use in 2D and 3D geometric graphics for applications from industrial design to entertainment Spline curves also critical in CG animation (used to control motion and camera paths, as well as model shape)
9	2D Geometric Graphics Roadmap What is geometric graphics? Seeing geometry (rendering) Transformations Working with paint and draw programs: pros, cons, and combinations
10	The Coordinate Space Again Cartesian Coordinates Geometric objects are defined mathematically in a continuous “floating point” space– decimals represented, not just integers Screen (pixel) space is discrete--only integers (1,2,3, etc) represented x, y Cartesian grid Integer Grid NB: screen coordinates often measured top to bottom, based on raster scanline order
11	Seeing Geometry Geometric descriptions are abstract, mathematical descriptions Rendering a geometric description makes it visible on the screen (or printer) done by sampling the geometry and creating pixel arrays (raster images) These images are not stored as part of the model. Can’t usually work directly with individual pixels in geometry-based programs Elements’ geometric descriptions manipulated, then rendered

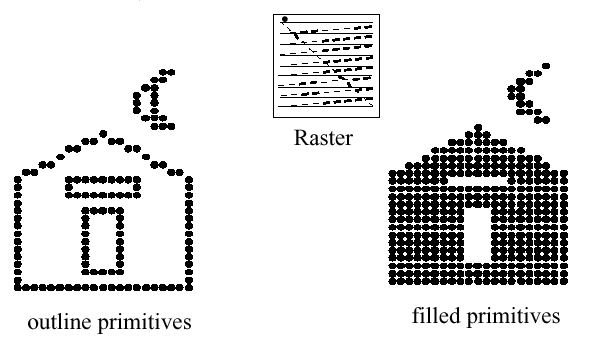

12	Graphics Display Hardware Vector (calligraphic, stroke, random-scan) still used in some plotters NOT raster/sample based Raster (TV, bitmap, pixmap), used in most current displays and printers
13	Drawing Lines (Sampling Geometry) For horizontal, vertical and diagonal lines all pixels lie on the ideal line: special case For lines at arbitrary angle, pick pixels closest to the ideal line Sampling a continuous line on a discrete grid introduces sampling errors: the “jaggies”

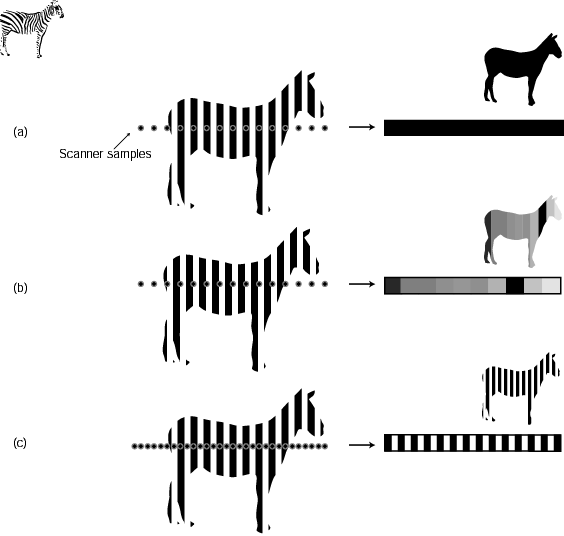

14	Sampling “Rates” In general, more samples per unit of area gets you better looking results (a): scanning a zebra image with “rate” about the same as the stripes (b): sampling at 1.5 times frequency of stripes (c): scanning at 2x stripe frequency
15	(more) Sampling “Rates” Note (a) and (b) not just low quality—actually “wrong” Called aliasing (like having a fake name)—it appears to be something it is not Aliasing a big problem in graphics Comes up whenever one has to convert continuous data into discrete data (in graphics and beyond)

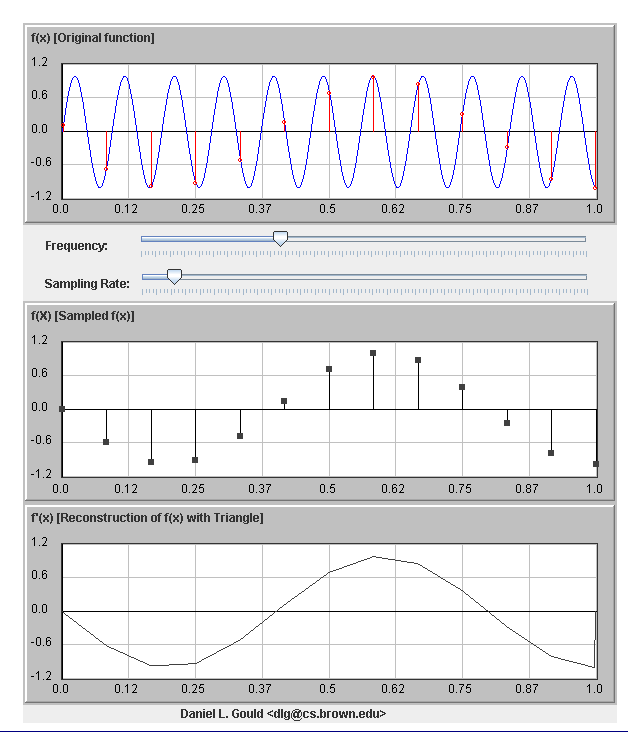

16	Nyquist Applet Shows “signal” wave rather than recognizable image High frequency represents areas of abrupt change in image (high contrast) Text and line drawings are high frequency, Low frequency represents Areas of gradual brightness or color change in image Gradients are low frequency Sampling below Nyquist limit creates aliases—high frequency inputs that masquerade as low frequency ones
17	Anti-Aliasing No matter how high you scan, still lose info… Can improve outcome by including some influence of neighbors in addition to value of main sample I.e., give the surrounding sample colors some weight in calculating final pixel color Sound familiar? Same filters used for antialiasing as blurring, scaling
18	2D Geometric Graphics Roadmap What is geometric graphics? Seeing geometry (rendering) Transformations Working with paint and draw programs: pros, cons, and combinations
19	Transformations Vertices, paths, and fills used to define objects Can be modified by adjusting vertices/control points Modification of whole object done with 3 types of mathematical transformations: Translation (moving around) Scaling Rotation
20	Important Features of Transformations Disclaimer: all this even more important for 3D work Order of operations matters (as well see in demo) Scaling and then rotating doesn’t give same result as rotating, then scaling… Illustrator demo Only need these three transformations (translate, scale, rotate) to assemble any group of parts into final object (!) All 3D programs based on these 3 transformations

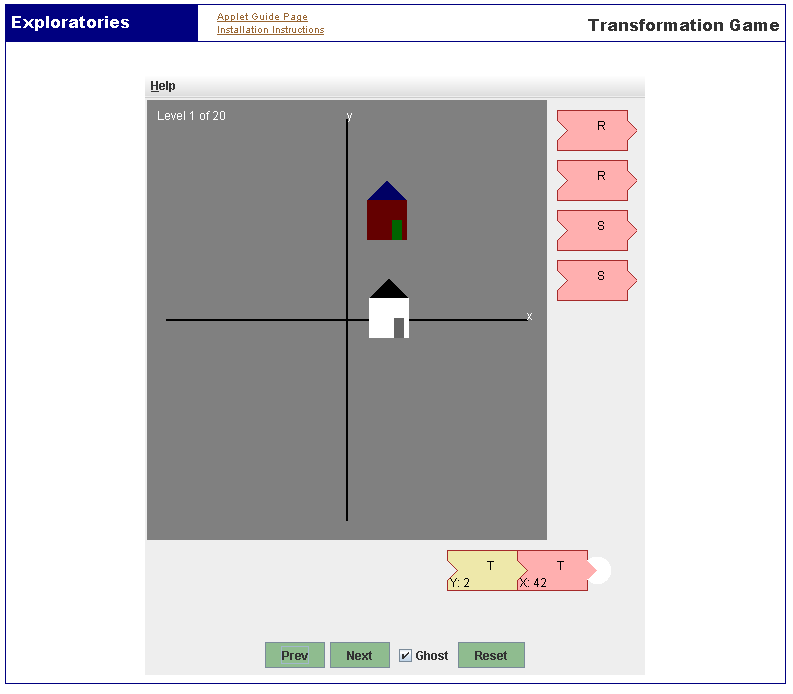

21	Transformation Game Get feeling for programming transformations (with no programming or math) T= Translation (move) R = Rotate S = Scale All transforms relative to origin (0,0) E.g., rotation is around the 0,0 point, not the middle of the object
22	2D Geometric Graphics Roadmap What is geometric graphics? Seeing geometry (rendering) Transformations Working with paint and draw programs: pros, cons, and combinations
23	Sample-based (raster, paint) Pros and Cons Pros Photographic realism Variations of colors within area Able to (somewhat) simulate many traditional media (paints, markers, etc.) Supports actions like “smudging”, blurring etc. Cons Objects have no memory/definitions—can’t select them and move them around (at least not easily, and a moved object leaves a hole in the image) Large file size Filtering and other operations computationally intensive—can be slow Fixed scale (pixel dimensions of image)
24	Geometry-based (vector, draw) Pros and Cons Pros Objects defined as such—can select, transform easily and without quality loss Easy to align and compose objects Rendering resolution dependent on screen or printer—can render in any scale and quality desired (great for print work) Cons Harder to achieve realism – not photographic looking Can’t vary colors in complex ways—just have fills with gradients and patterns, but not changes made by hand Color selection tedious
25	Joining Forces Most programs combine aspects of data types Adobe Photoshop Has text that can stay “geometric” indefinitely Has layers to make defining raster “objects” easier Has spline-based path tool for defining selection/mask areas Adobe Illustrator Can import raster images and transform them (although you can’t edit any pixel data by hand or adjust contrast, etc.) Can “paint” with brush-like tool that saves stroke as a filled path Corel Painter: Many combo features such as “snap-to-path painting” 3D programs use texture mapping and “polygon painting” 3D graphics increasingly combining image-based (raster) and geometric techniques
26	Assignment

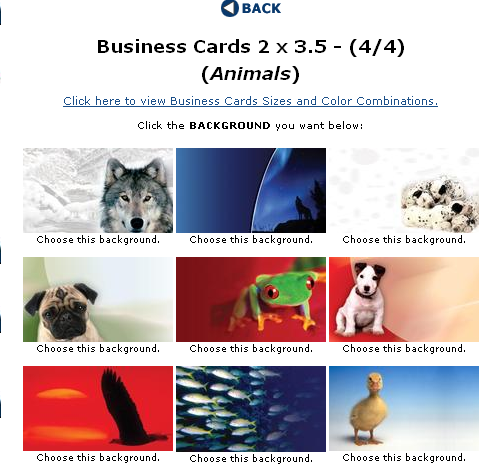

27	Business Card Self-Portraits Create two business cards, each representing you in a particular role you play There is a long art tradition of the self-portrait. Usually this involves creating an image of one's face. In this exercise, the self-portraits will be developed as business cards. Each of the two cards will represent you in a particular role in your life--e.g., student, friend, boyfriend/girlfriend, child, member of club, sports team, role in pursuing a hobby, or more abstract if you like, role as human being, citizen of a country, etc. You can be creative in how you define the roles you play in your lives. If applicable, where would you hand out this card? To whom?
28	Technical Details The cards must be standard size (2” x 3.5”) Cards must be submitted in either .eps or Illustrator, or pdf format OR As a raster image (e.g., Photoshop) at 300dpi. Submit them to ams@cs.brown.edu via email. Due: Next Thursday (March 10) We will print them out for you on card stock
29	Consider All the aspects discussed in the Williams book Proximity Alignment Repetition Contrast As well as choice of type. Add graphics (beyond type) only if they will make your self-representation more effective (i.e., don't just add eye candy)

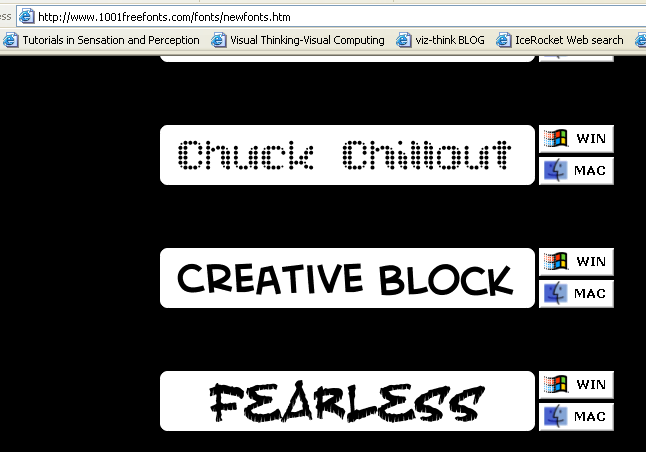

30	Go Beyond Williams Text Read her “business card” section Also look online (sites in assignment sheet)—and at any business cards you encounter in real life
31	Have Fun!
